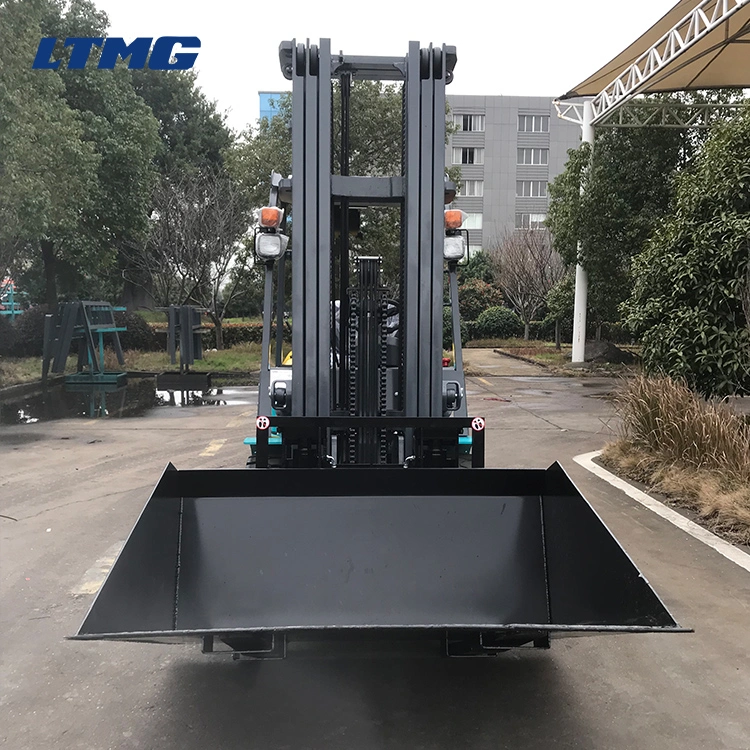

Forklift accessories hinged bucket 2 tons 2.5 tons 3 tons 3.5 tons forklift with bucket

Product specificationThe specification of 3 ton diesel forklift with hinged bucket  The specification of 3 ton diesel forkliftManufacturer   LTMGModel Power shift T/MFD30TManual shift T/MFD30CLoad capacity  kg3000Load center  mm500Power unit   Diesel  Ope

Featured Products

Product specification

The specification of 3 ton diesel forklift with hinged bucket

Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket
Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket
Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket




The specification of 3 ton diesel forklift
Manufacturer   LTMG
Model Power shift T/MFD30T
Manual shift T/MFD30C
Load capacity  kg3000
Load center  mm500
Power unit   Diesel
Operator type   Driver/seat
Tire type   Pneumatic
Wheel Front/rear 2/2
Max. lifting height   mm3000
Free lift  mm150
Fork size  L*W*Tmm1070*125*45
Tilt range  Mast forward/backwarddeg6/12
Overall length(without fork)  mm2705
Total width  mm1225
Mast height (fork lowering) mm2075
Overall height fork raisedWith backrest  mm4250
Height to head guard mm2140
Turning radius(outside)        mm2445
Front face of fork to front axle mm480
Min. right angle stacking aislewithout load length&clearance mm2925
Speed Max Travelling
full/no load
km/h18/19.5
Lifting full/no load mm/s450/500
Lowering full/no load  mm/s450/450
Max.drawbar pullPower shift T/M
full/no load
kg1500/1000
Manual shift T/M
full/no load
kg1550/1000
Gradeability at 1.6km/hPower shift T/M
full/no load
%18/20
Manual shift T/M
full/no load
%18/20
Truck weight kg4380
Weight  distributionFull load front/rearkg6490/890
No load front/rearkg1670/2700
Tires Numberfront/rear2/2
Modelfront axle 28x9-15-12PR
rear axle6.50-10-10PR
Wheelbase  mm1700
Tread Front/rearmm1000/970
Ground clearance   At lowest point(mast) mm120
Framemm135
Brake Service  brake Hydraulic-foot pedal
Parking brake Mechanical-hand lever
Battery   Voltage/capacityV/AH12/80
Engine     Model ISUZU C240
Rated powerkw/rpm34.3/2500
Rated torqueN.m/rpm138/1800
Number of cylinders 4
PlacementL2.369
Fuel tank capacityL70
Transmission      Speed forward/backwardPower shift T/M Manual shift T/M1-1 power shift T/M
2-2 manual shift T/M


Product Features

1. Adopt TCM type transmission, steering axle

2. Isuze engine and Mitsubishi engine are optional

3. Equipped with famous brand parts, like Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals,Toyota seat with safety belt,cooper tank and so on

4. Attachments can be equipped as customer's requirements, such as paper roll,forklift rotator,clamp etc.
The most reasonable system matching after repeated verification.
After 400 hours of continuous enhancement test.


Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket


Packing & Delivery

Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket


Our Factory
Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket

Contact us




Exhibition and Customers

Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket




After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with
one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.



Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket
Forklift Attachment Hinged Bucket 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift with Bucket




FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.


2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.


3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.


6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
