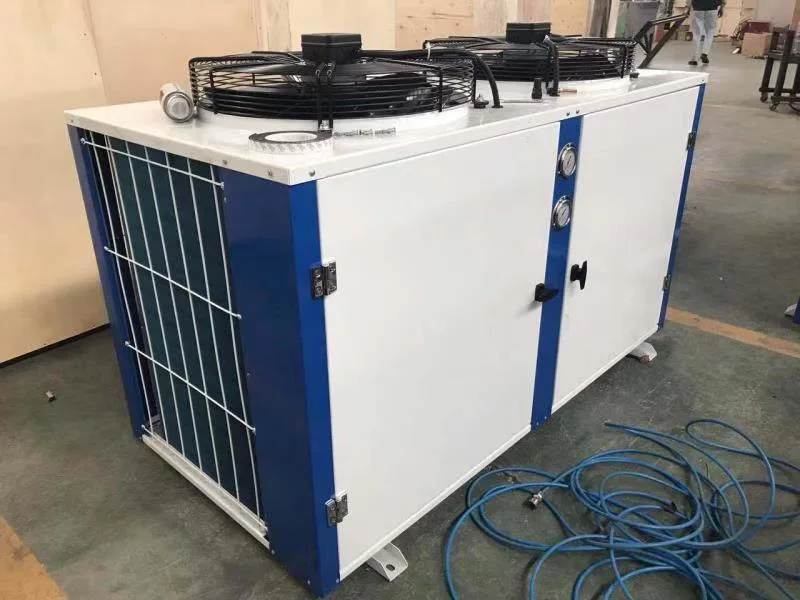

High-quality air-cooled refrigerator 5HP condensing unit cooling system

Product description:D series evaporator is a kind of cooling equipment suitable for various cold storages such as quick freezing fresh keeping and etc. There are three types available: DL DD and DJ which fits for the different cold temperatures. It has compact structure and make full use of warehouse area which can make the stor

Featured Products

Product description:

D series evaporator is a kind of cooling equipment suitable for various cold storages such as quick freezing fresh keeping and etc. There are three types available: DL DD and DJ which fits for the different cold temperatures. It has compact structure and make full use of warehouse area which can make the storage food cool rapidly and improve the freshness of storage food. DL type is suitable for fresh-keeping storehouse around O degree DD type suitable for chiller room around -18 degree DJ type is suitable for freezer room around -25 degree.

The features as follows:
The evaporator are of reasonable structure uniform frosting and high efficiency heat exchange;
The shell is made of quality steel with surface plastic-sprayedwhich is corrosion-resistant and beautiful;
The evaporator are assembled with quality fan motor with low noise big air volume and stable operation;
The evaporator adopt U-shaped stainless copper pipe evenly put into the fins which can shorten the defrosting time;
The shell materials can be produced according to customer's requirement;
The evaporator are tested under air pressure2. 5MPa guaranteeing the products' high gas tightness.



Product parameters:

Tech.data for Box L type condensing units


ModelHeat exchange capacity
(kW)
Adapter type
(HP)
FanInlet pipe/ Outlet pipe(mm)Overall dimension(mm)Installation dimension(mm)
Power
(w)
Diameter
(mm)
Air volume
(m3/h)
Vlotage
(v)
Inlet tube
(mm)
Back trachea
(mm)
A*B*HDE
FNL-206.621*190φ4001*3800380φ10φ161110*500*790590440
FNL-299.631*190φ4001*3800380φ10φ161110*500*790590440
FNL-3912.541*190φ4001*3800380φ10φ161110*500*790590440
FNL-4815.952*190φ4002*3800380φ12φ191110*500*1240590440
FNL-5818.162*190φ4002*3800380φ12φ191110*500*1240590440
FNL-6820.572*190φ4002*3800380φ12φ191110*500*1240590440
FNL-7022.482*230φ4502*5000380φ16φ221230*560*1240840500
FNL-8025.692*230φ4502*5000380φ16φ281230*560*1390900500
FNL-9028.8102*230φ4502*5000380φ16φ351330*560*1390940500
FNL-10032.1122*320φ5002*6600380φ16φ351430*560*13901040500
FNL-12038.412~134*190φ4004*3800380φ16φ351630*630*13901110570
FNL-14044.4154*190φ4504*5000380φ16φ351730*630*13901210570




Medium and High Temperature Air-Cooled Condensing Unit Scroll Series
Model of unitsRX-FNL-02MHRX-FNL-03MHRX-FNL-04MHRX-FNL-05MHRX-FNL-06MH
Compressor modelZB15KQZB21KQZB29KQZB38KQZB45KQ
Applicable Temperature(ºC)0ºC ~ -15ºC
RefrigerantR22 / R404A
Supply380V 50Hz
CondenserQuantity of Fan(pcs)11122
Air flow(m3/h)1*38001*38001*38002*38002*3800
Power of Fan(w)1*1901*1901*1902*1902*190
Ref.Capacity of
condensing units
Evaporating
Temperature
0ºC
Ref.
Capacity(w)
4830/46707020/66909430/948011700/1195014150/14000
Power(w)1540/17202270/24802890/3290660/41504230/4700
Evaporating Temperature
-5ºC
Ref. Capacity(w)4000/38205820/57407810/77909710/983011750/11500
Power(w)1520/17602240/25002860/33103610/41804210/4730
Evaporating Temperature
-12ºC
Ref. Capacity(w)2990/27104350/43005840/58407260/73708840/8630
Power(w)1510/18402220/25102930/33303570/42004150/4760
CouplingTube couplingφ10φ10φ12φ12φ12
Suction couplingφ16φ16φ19φ19φ19
Overall dimensionLenght (A) mm11101110111011101110
Width (B) mm500500500500500
Height (H) mm79079079012401240
Installation dimensionLenght (D) mm590590590590590
Width (E) mm440440440440440
Medium and High Temperature Air-Cooled Condensing Unit Scroll Series
Model of unitsRX-FNL-07MHRX-FNL-08MHRX-FNL-10MHRX-FNL-12MHRX-FNL-15MH
CompressorModelZB48KQZB58KQZB76KQZB88KQZB114KQ
Applicable Temperature(ºC)0ºC ~ -15ºC
RefrigerantR22 / R404A
Supply380V 50HZ
CondenserQuantity of Fan(pcs)22244
Air flow(m3/h)2*50002*50002*70004*38005*5000
Power of Fan(w)2*2302*2302*4204*1904*250
Compressor
Ref. Capacity
Evaporating Temperature
0ºC
Ref. Capacity(w)15600/1575018550/1860024900/247002850036200/36300
Power(w)4650/55705470/63907180/8360813010900/12700
Evaporating Temperature
-5ºC
Ref. Capacity(w)12950/1300015100/1530020600/204002350029500/29700
Power(w)4630/54105460/63607130/8290807010800/12650
Evaporating Temperature
-12ºC
Ref. Capacity(w)9730/980010900/1135015450/152501755021100/21900
Power(w)4570/51505470/63207040/8190797010750/12650
CouplingTube couplingφ16φ16φ16φ16φ16
Suction couplingφ22φ28φ35φ35φ35
Overall dimensionLenght (A) mm12301230143016301730
Width (B) mm560560560630630
Height (H) mm12401390139013901490
Installation dimensionLenght (D) mm840900104011101210
Width (E) mm500500500570570

Case:

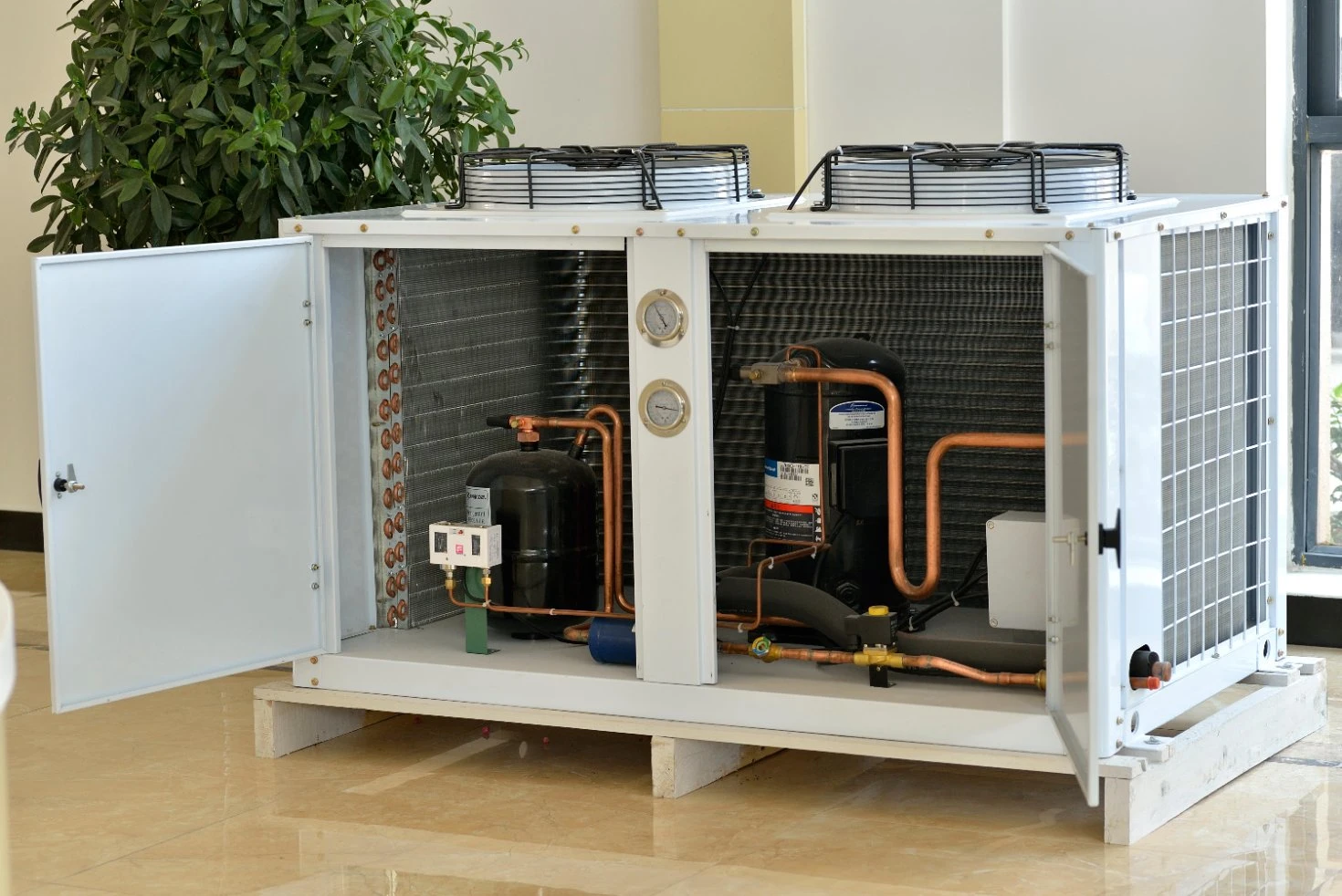

Good Quality Air Cooled Refrigerating Freezer 5HP Condensing Unit Cooling System
